12V Lithium ion Battery 100Ah High Energy Saving for Electric Boat Solar System
Feature
Lifepo4 battery pack
12V 100Ah solar storage Lifepo4 battery with lead acid case
Interchange design of lead acid battery
Built-in PCB for over-voltage, under voltage and over-temperature
Series connection up to batteries (24v,36v ,48v ,60v ,72v)
Internal cell balancing
Maintenance-free
Rugged mechanical design
Thousands of cycles under normal conditions
Can be charged with most lead-acid chargers
Notes
Our lifepo4 lithium battery pack (12V solar storage li ion battery), with nominal voltage of 12V and capacity of 100Ah is assembled with high quality LiFePo4 cells. It can be used individually and can be connected in serial or parallel to achieve given voltage and capacity.
Major applications
1. Telecommunications
Cordless phones, cellular phones, transceivers and pagers.
2. Audio and Video Devices
Digital cameras, Camcorders, Portable DVD, VCD, MD and CD palyers.
3. Lightings
Emergency lightings, Solar lights, Search lights and Flashlights.
4. Remote Control Toys
R/C Cars, R/C Ships and Model planes.
5. Information Devices
Notebook computers, Personal facimile machines, PDAs.
6. Power Tools
Electric drills, Sanders, Screwdrivers, Saws, Polishers.
7. Other Applications
Electric bicycles, Shavers, Massagers, Electric tooth brushes, Handheld vacuum cleaners, Handheld terminals.
This is the BMS of 4S with 30A/50A/100A continuous discharge current Lithium BMS/PCM/PCB battery management system.
For the assembly of the nominal voltage 3.2V LiFepo4 batteries (4s)
NOTE: customize service provide , We can design the voltage and discharge current as you need , Please feel free to contact us !
Battery Description
Lithium LifePo4 Battery 12.8V; 14.4V; 12V; 14.6V voltage are the same for the same kind of battery, the battery parameters are the same, the charge / discharge performance are the same
Scope:
12.8V (3.2V * 4 series) LifePo4 batteries
14.4V (3.6V * 4 series) LifePo4 batteries
14.6V (3.65V * 4 series) LifePo4 batteries
Available combination of cylindrical LifePo4 3.2v ; lithium LifePo4 composition; square LifePo4 combination
Parameter:
Single maximum protection voltage: 3.65V ± 0.025V
Single minimum protection voltage: 2.50V ± 0.1V
Stable operating current: 30A/50A/100A
Maximum instantaneous current: 60A/100A/200A
Protection: over-charge protection; over-discharge protection; over-current protection, short circuit protection
· Over-discharge release: disconnect the load, and each cell voltage is higher than the over-discharge threshold
· Overcurrent release: Disconnect load release.
· Size: rational allocation based on the operating current and customer requirements
· Short circuit protection function: to protect, disconnect recoverable.
· Main features: over charge protection, over-discharge protection, short circuit protection, overcurrent protection, balancing.
· Overt emperature : Normal current temperature rise:45-60ºC; protection :80-90ºC.
SPECIFICATION
| Item | Characteristics |
| Chemistry | LiFePO4 |
| Nominal Capacity | 105Ah |
| Nominal Voltage | 12V |
| Charging Voltage | 14.6V |
| Max. Continuous Charge Current | 20A |
| Max. Continuous Discharge Current | 50A |
| Operation Temperature Range | Charge: 0~45℃ Discharge: -20~60℃ |
| Storage Temperature Range | Less than 1 year: -20~25℃ less than 3 months: -20~40℃ less than 1 month: -20~50℃ |
| Cycle Life(1C) | 2000 times |
| Mechanical characteristics and Safety Test | Vibration Test,Drop Test,Crush,Short Circuit, Impact,Forced Discharge,Nail Pricking |
| Protection Circuit | Over charge protection,Over discharge Protection Short protection |
| Certification | CE,ROHS,MSDS,UN38.3 |
You can series 12v 100ah for 24v ,36v ,48v ,60v 72v and so on or parallel for 200ah ,300ah ,400ah ,500ah and so on
For example:
1S2P:12V 200AH
1S3P:12V 300AH
1S4P:12V 400AH
1S5P:12V 500AH
2S1P:24V 100AH
3S1P:36V 100AH
4S1P:48V 100AH
5S1P:60V 100AH
5S1P:72V 100AH
and so on.

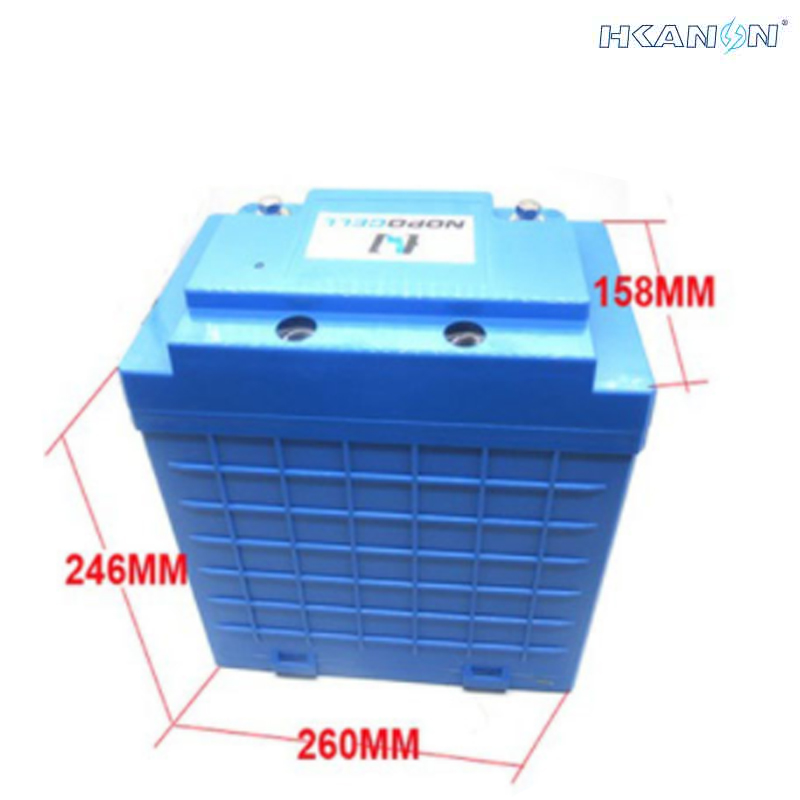

INTERIOR AND EXTERIOR GALLERY
